Understanding Fuse Cutouts: A Comprehensive Guide to Overcurrent Protection

Introduction:

Fuse cutouts are essential components in electrical distribution systems that provide overcurrent protection. They play a vital role in safeguarding electrical equipment and preventing damage caused by excessive currents. In this article, we will delve into the fundamentals of fuse cutouts, their working principles, types, installation, and maintenance practices, highlighting their significance in maintaining a reliable and safe electrical infrastructure.

1. Overview of Fuse Cutouts:

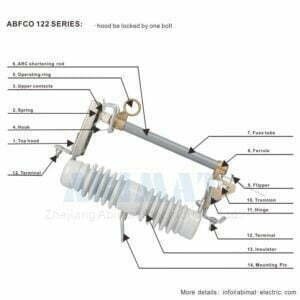

ABIMAT Fuse cutouts, also known as fused disconnect switches or expulsion fuses, are protective devices designed to interrupt current flow in the event of overcurrent conditions. They consist of a fuse assembly and a disconnect switch, which are combined into a single unit. When an excessive current passes through the fuse cutout, the fuse element melts or “blows,” opening the circuit and disconnecting the faulty section from the power source.

2. Working Principles:

Fuse cutouts utilize the principle of thermal interruption to protect against overcurrents. The fuse element inside the cutout is made of a low-melting-point material, such as silver or copper. Under normal operating conditions, the current flows through the fuse element without any interruption. However, if the current exceeds a predetermined rating, the heat generated by the excessive current causes the fuse element to melt, creating an open circuit.

3. Types of Fuse Cutouts:

There are several types of ABIMAT fuse cutouts available, each designed for specific applications and voltage levels. Common types include:

• Expulsion Fuse Cutouts: These cutouts utilize the expulsion effect of gases to extinguish the arc and interrupt the current.
• Dropout Fuse Cutouts: Dropout cutouts are designed to provide a visible indication when the fuse element operates.
• Current-Limiting Fuse Cutouts: These cutouts are engineered to limit the amount of fault current that can flow through the system.

4. Installation and Maintenance:

Proper installation and regular maintenance of fuse cutouts are crucial for ensuring their reliable performance. Here are some key considerations:

• Correct selection of fuse cutout type based on the system requirements.
• Installation following manufacturer guidelines and adhering to safety regulations.
• Regular inspections to identify signs of wear, corrosion, or loose connections.
• Prompt replacement of blown fuses to maintain effective overcurrent protection.

5. Benefits and Applications:

Fuse cutouts offer several advantages, making them widely used in electrical distribution systems. Some key benefits include:

• Reliable overcurrent protection for electrical equipment.
• Cost-effective solution compared to alternative protective devices.
• Quick and easy replacement of blown fuses, minimizing downtime.
• Suitable for a broad range of applications, including residential, commercial, and industrial settings.

Conclusion:

Fuse cutouts are indispensable components in electrical systems, ensuring overcurrent protection and preventing damage to equipment. Understanding their working principles, types, and proper installation and maintenance practices is essential for maintaining a safe and reliable electrical infrastructure. By implementing fuse cutouts effectively, we can mitigate the risks associated with overcurrents and enhance the overall performance of electrical distribution systems.

Technical Overview of the Off-Load Disconnector

A 138 kV disconnect switch—people also call it an isolator—is a basic mechanical switching tool. It works in high-voltage electrical substations and transmission lines. Its main job, and a very important one, is to create a clear, trustworthy air gap. This gap isolates a part of the circuit. It keeps workers safe when they do maintenance or checks by cutting power to the equipment.You need to know one key thing: a regular disconnect switch isn’t made to stop load current or fault current. That’s what a circuit breaker does. The switch should only be used when the circuit has no power—either because an upstream breaker turned it off, or because the current is so small it barely matters.These switches are built for the 138 kV voltage level. This level is widely used in many power grids. When designers make them, they focus on several important points. The switches must handle normal power frequency and impulse voltages. They also need to stand up to mechanical stress—from wind, ice, and even the electromagnetic forces that sometimes come with fault currents.The main parts that carry electricity are usually made of aluminum or copper alloys. For insulation, they use porcelain or composite polymer insulators.At this voltage level, three types of switches are most common.First is the horizontal (side-break) switch. Its moving blade spins in a horizontal direction.

Then there’s the vertical-break switch. Its moving blade turns up and down, and it often takes up less space.The third is the center-break switch. It has two sets of rotating insulators, and the gap opens right in the middle.Most of the time, you operate these switches by hand with a hand-wheel. Some use a motorized part so you can control them from far away. One design feature is crucial: the “arcing horn” contacts. If a small, unexpected spark happens while you’re using the switch, these contacts pull the spark away from the main current-carrying parts. This stops damage.Sometimes you need a switch that can stop small amounts of current—like the magnetizing current in a transformer. For these cases, you can use a load-break disconnect switch. It has a simple part that stops the current.But for regular isolation jobs, the common air-break disconnect switch is still a must. It’s simple and strong. You can clearly see if it’s open or closed, and it’s reliable. These qualities are vital for keeping 138 kV transmission systems safe and flexible.
