FUSE LINK – FUSE CUTOUT ACCESSORIES
GENERAL FEATURES:
- PRODUCT TYPE: K type, T type
- BRAND NAME: ABIMAT
- MATERIAL: COPPER
- SURFACE: SILVERING, TINNING
- RATED VOLTAGE: 10-33KV
- RATED CURRENT: 3-200A
- PACKING: CARTON PACKING
- OEM: AVAILABLE
FUSE LINK PARAMETERS:
| Melting Speed Ratio | T type: 10~13 ; K type: 6~8 |
| Rated Current | 1, 2, 3, 5, 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 65, 75, 80, 100, 120, 140, 200A |
| Standard | IEC 60282-2 |
| Environmental Conditions | Ambient Temperature: -30℃ – +40℃ |
| Altitude: 3000m | |
| Frequency: 50Hz / 60Hz | |
| Maximum Wind Speed: 35m/s |

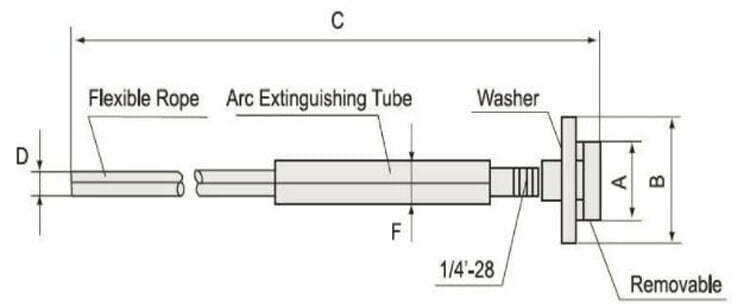

| Rated current (A) | Dimensions (mm) | ||||
| A | B | C | D | F | |
| 1-25 | 12.5±0.2 | 19.0 ± 0.2 | 12/24KV: 530-600 | 2 | 6.5 |
| 30-40 | 12.5±0.2 | 19.0 ± 0.2 | 36KV: 787 | 3 | 8 |
| 50-100 | 19.0±0.3 | not applicable | 5 | 10 | |
| 120~200 | 19.0±0.3 | not applicable | 7 | 12 | |
FUSE LINK DESCRIPTION:
Meet all applicable Standards ANSI/NEMA
ABIMAT Type K and Type T fuse link is made in complete accordance with standards ANSI/NEMA. Other links meet all the standards except those covering time-current characteristics. Time-current characteristics for links other than K and T links are not covered in the ANSI standards.
Precision — The standard of ABIMAT fuse link
ABIMAT fuse links assure system protection because they are precision manufactured. The fusible materials used in ABIMAT Fuse Links are under continual control during manufacture. Pre-tested to guarantee their electrical values, these materials are held to precise tolerances. At critical points during the manufacturing process, rigid inspections are made.
Materials
The fusible section of the 1 through 3 ampere Type K links consist of a stainless-steel fuse strain wire; the 6 through 10 ampere, stainless-steel strain wire and a copper-alloy fuse wire; 12 through 100amperes, a stainless steel strain wire and a silver-copper fuse wire; 140 and 200 ampere, a silver -copper fuse wire large enough to serve as both strain and fuse wire.
Packaging
ABIMAT fuse link come in protective plastic bags with perforations to facilitate quick, easy opening even when lineman’s gloves are worn. Each bag remains completely sealed for all-weather protection and keeps the links protected in the line truck’s bins.
Type and amperage is printed on each bag, for easy identification.
Application
The fast characteristics of Type K fuse links were established by ANSI/NEMA to provide fuse links that would meet existing coordination schemes.
ABIMAT Type fuse links are designed to carry 150% of their rated current without damage to the fuse link itself or the cutout in which it is installed.
This capacityis for special loading situations, such as shorttime over loads and cold load pick-up.
Button head and length
Conforming to all applicable ANSI/NEMA specifications, ABIMAT Type K links are available with a removable or solid button head.
